| Description |

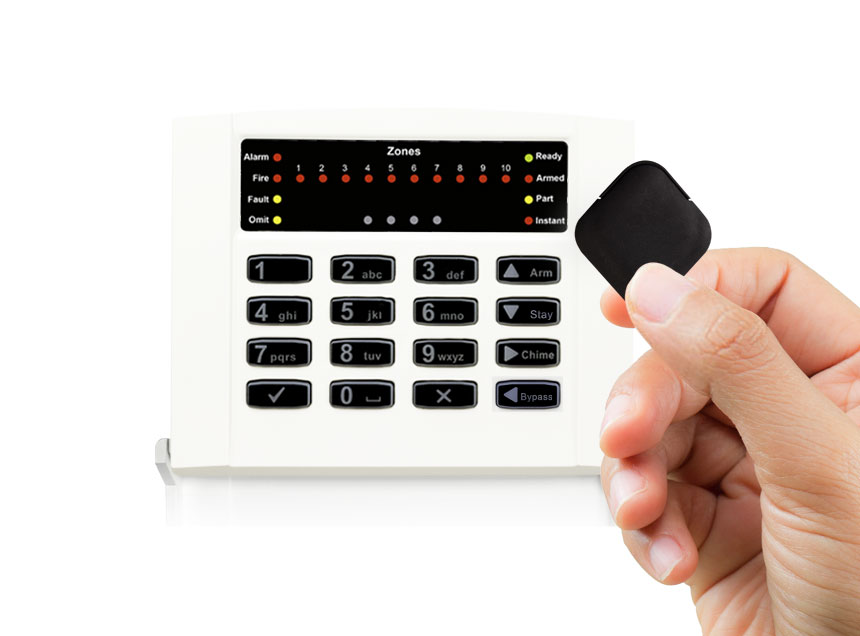

LED keypad with Detachable Hinged Cover (10 zone display) |
LED keypad with Detachable Hinged Cover (20 zone display) |
LCD keypad with Detachable Hinged Cover |
Large Display LCD keypad with Detachable Hinged Cover |
| Integrated Installation Manual |
NO |
NO |
YES |
YES |
| NFC Prox Tag Support |
Optional |
Optional |
Optional |
Optional |
| Inputs/Outputs |
1 |
1 |
1 |
1 |
| 128 Character Display |
NO |
NO |
YES |
YES |
| Temperature Sensor |
YES |
YES |
YES |
YES |
| On-Board Sounder |
YES |
YES |
YES |
YES |
| 16 Ohm Speaker Support |
NO |
NO |
NO |
NO |
| ‘Copy & Paste’ Function |
NO |
NO |
YES |
YES |
| Selectable Language Per User |
NO |
NO |
YES |
YES |
| Programmable Volume Levels |
NO |
NO |
NO |
NO |
| Light Sensor |
NO |
NO |
NO |
NO |
| Self-Adjusting Backlight |
NO |
NO |
NO |
NO |
| Tamper Detection Options |
Lid (Optional Wall) |
Lid (Optional Wall) |
Lid (Optional Wall) |
Lid (Optional Wall) |
| QWERTY Keyboard |
NO |
NO |
NO |
NO |
| Company Logo on Screen |
NO |
NO |
NO |
NO |
| User Selectable Colour |
NO |
NO |
NO |
NO |
| Keypad Randomiser |
NO |
NO |
NO |
NO |
| Full Programming |
NO |
NO |
YES |
YES |
| Hinged PCB |
YES |
YES |
YES |
YES |
| Mounting Options |
Low Profile |
Low Profile |
Low Profile |
Low Profile |
| Input Voltage |
10-15 Vdc |
10-15 Vdc |
10-15 Vdc |
10-15 Vdc |
| Current Consumption – Quiescent |
30mA |
30mA |
35mA |
35mA |
| Current Consumption – Backlit |
50mA |
50mA |
70mA |
70mA |
| Dimensions (based on low profile) |
141mm x 111mm x 30mm |
141mm x 111mm x 30mm |
141mm x 111mm x 30mm |
153mm x 120mm x 30mm |
| Material |
High Density ASA |
High Density ASA |
High Density ASA |
High Density ASA |
| EN 50131-3 |
Grade 2 |
Grade 2 |
Grade 2 |
Grade 2 |
