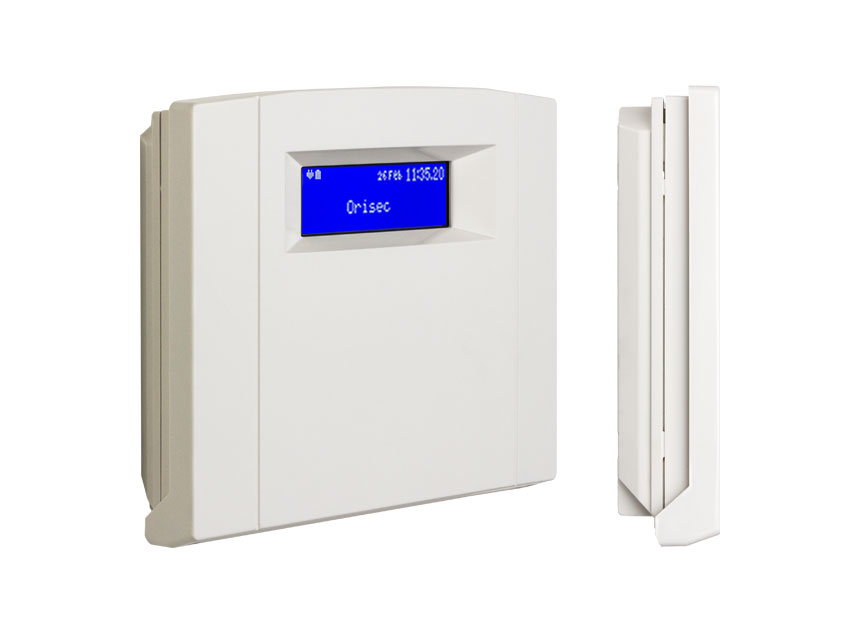

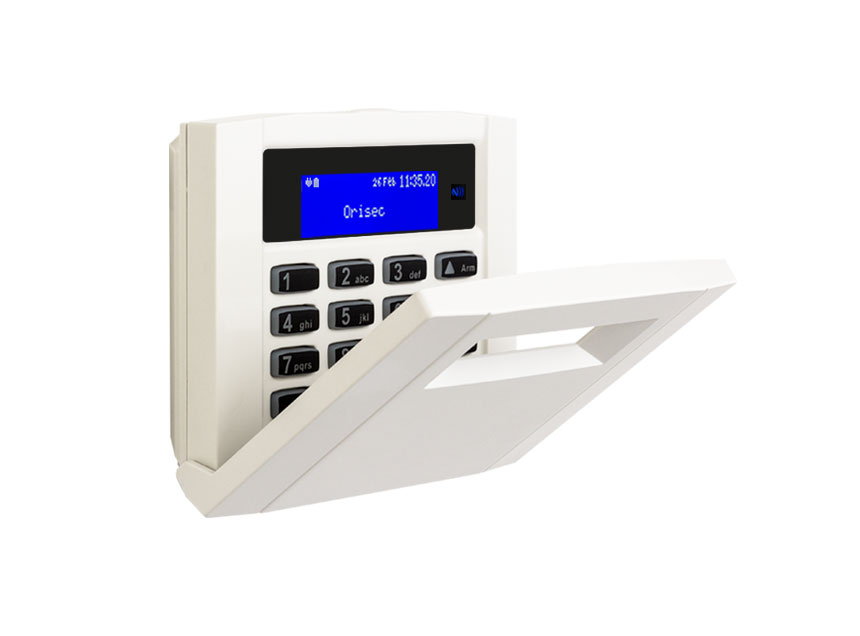

RK-400-LCD Keypad

Summary:

Click to expand

	RK-400-LED-10	RK-400-LED-20	RK-400-LCD	RK-450-LCD
Description	LED keypad with Detachable Hinged Cover (10 zone display)	LED keypad with Detachable Hinged Cover (20 zone display)	LCD keypad with Detachable Hinged Cover	Large Display LCD keypad with Detachable Hinged Cover
Integrated Installation Manual	NO	NO	YES	YES

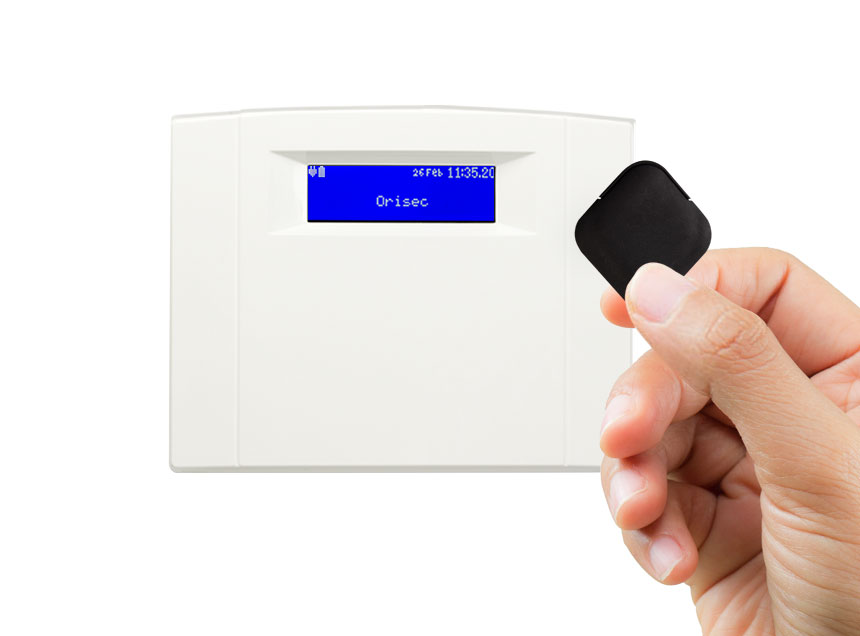

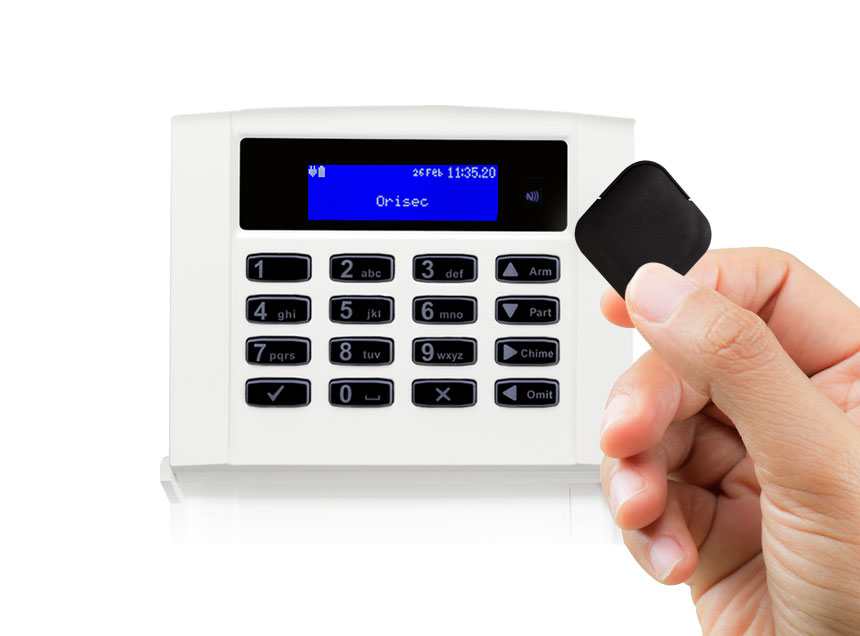

NFC Prox Tag Support	Optional	Optional	Optional	Optional
Inputs/Outputs	1	1	1	1
128 Character Display	NO	NO	YES	YES
Temperature Sensor	YES	YES	YES	YES
On-Board Sounder	YES	YES	YES	YES
16 Ohm Speaker Support	NO	NO	NO	NO
‘Copy & Paste’ Function	NO	NO	YES	YES
Selectable Language Per User	NO	NO	YES	YES
Programmable Volume Levels	NO	NO	NO	NO
Light Sensor	NO	NO	NO	NO
Self-Adjusting Backlight	NO	NO	NO	NO
Tamper Detection Options	Lid (Optional Wall)	Lid (Optional Wall)	Lid (Optional Wall)	Lid (Optional Wall)
QWERTY Keyboard	NO	NO	NO	NO
Company Logo on Screen	NO	NO	NO	NO
User Selectable Colour	NO	NO	NO	NO
Keypad Randomiser	NO	NO	NO	NO
Full Programming	NO	NO	YES	YES
Hinged PCB	YES	YES	YES	YES
Mounting Options	Low Profile	Low Profile	Low Profile	Low Profile
Input Voltage	10-15 Vdc	10-15 Vdc	10-15 Vdc	10-15 Vdc
Current Consumption – Quiescent	30mA	30mA	35mA	35mA
Current Consumption – Backlit	50mA	50mA	70mA	70mA
Dimensions (based on low profile)	141mm x 111mm x 30mm	141mm x 111mm x 30mm	141mm x 111mm x 30mm	153mm x 120mm x 30mm
Material	High Density ASA	High Density ASA	High Density ASA	High Density ASA
EN 50131-3	Grade 2	Grade 2	Grade 2	Grade 2
