200 Series Detectors

IR-200

PIR

Summary:

15 Metre Range
Grade 2
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

IR-200-PET

Pet Friendly PIR

Summary:

35kg Pet Friendly
15 Metre Range
Grade 2
Multi Height Optics
2.0m – 2.2m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

QD-200

Quad PIR

Summary:

Genuine Quad Element Pyro
15 Metre Range
Grade 2
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

TP-200

Twin PIR

Summary:

Twin PIR
15 Metre Range
Grade 2
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

DT-200

Dual Technology PIR & MW

Summary:

Dual Technology Combined Microwave (24GHz) / PIR
15 Metre Range
Grade 2
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

DT-200-PET

Pet Friendly Digital
Dual Technology PIR

Summary:

35kg Pet Friendly
Dual Technology Combined Microwave (24GHz) / PIR
Grade 2
Multi Height Optics
2.0m – 2.2m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

DT-200-AC

Dual Technology PIR with
Anti-Cloak Technology

Summary:

Anti-Cloak Detection
Dual Technology Combined Microwave (24GHz) / PIR
Grade 2
15 Metre Range
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

IR-200-AM

Anti-Masking PIR

Summary:

Anti-Masking
Dual Technology Combined Microwave (24GHz) / PIR
Grade 3
Dedicated Fault / Mask Output
15 Metre Range
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Programmable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Lid and Wall Tamper†
Optional Grade 3 Bracket†

†Patent Pending

Request More Information

QD-200-AM

Anti-Masking Quad PIR

Summary:

Active IR Anti-Mask
Genuine Quad Element Pyro
15 Metre Range
Grade 3
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

DT-200-AM

Anti-Masking Dual Technology PIR

Summary:

Anti-Masking
Active IR Anti-Mask
Dual Technology
15 Metre Range
Grade 3
Multi Height Optics
1.8m – 3.1m Mounting Height
Interchangeable Cartridges
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†

†Patent Pending

Request More Information

W-IR-200

Wireless PIR Detector

Summary:

2 Way Wireless Communications
15 Metre Range
Simple Enrolment
Frequency Hopping Technology
Grade 2
Multi Height Optics
1.8m – 3.1m Mounting Height
Slide to Fit Front Cover
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tampered Bracket
Interchangeable Cartridges
True Battery Reading
Digital Thermometer

†Patent Pending

Request More Information

W-QD-200

Wireless Quad PIR Detector

Summary:

2 Way Wireless Communications
35kg Pet Friendly
15 Metre Range
Grade 2
Multi Height Optics
Simple Enrolment
Frequency Hopping Technology
2.0m – 2.2m Mounting Height
Slide to Fit Front Cover
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
True Battery Reading
Digital Thermometer

†Patent Pending

Request More Information

W-IR-200-PET

Wireless Pet Friendly PIR Detector

Summary:

2 Way Wireless Communications
35kg Pet Friendly
15 Metre Range
Grade 2
Multi Height Optics
Simple Enrolment
Frequency Hopping Technology
2.0m – 2.2m Mounting Height
Slide to Fit Front Cover
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
True Battery Reading
Digital Thermometer

†Patent Pending

Request More Information

Features

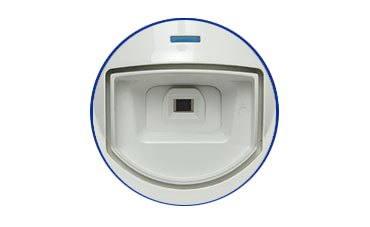

Sealed Optics

Sealed optics prevent bugs and dust from entering the housing, reducing false alarms and maximising reliability.

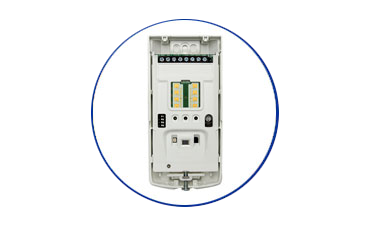

Interchangeable Cartridges

The 200 & 300 Series feature interchangeable cartridges which aid installation, protect the electronics and enable simple upgrading throughout each series.

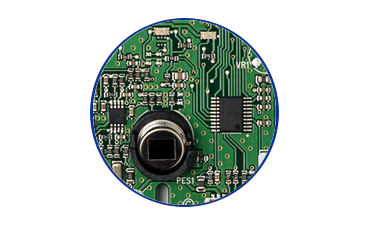

Digital Signal Processing†

Orisec’s advanced digital signal processing gives the very best intruder detection combined with false alarm and RFI immunity right up to 2.7GHz.
†Patent Pending

Compare 200 Series Detectors - Spec Sheet

Click to expand

	IR-200	IR-200-PET	QD-200	TP-200	DT-200	DT-200-PET	DT-200-AC	IR-200-AM	QD-200-AM	DT-200-AM	W-IR-200	W-QD-200	W-IR-200-PET
Description	PIR	Pet Friendly PIR	Quad PIR	Twin PIR	Dual Technology PIR & MW	Pet Friendly Dual Technology	Dual Technology with Anti-Cloak Technology	Anti-Masking	Anti-Masking Quad PIR	Anti-Masking Dual Technology	Wireless PIR	Wireless Quad PIR	Wireless Pet Friendly PIR
Detection Technology	PIR	35kg Pet Friendly PIR	Genuine Quad Element Pyro	Twin PIR	Dual Technology Combined	35kg Pet Friendly	Anti-Cloak Detection	Active IR Anti-Mask	Active IR Anti-Mask	Active IR Anti-Mask	PIR	Genuine Quad Element Pyro	35kg Pet Friendly PIR
Slide to Fit Front Cover	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
RFI Immunity up to 2.7GHz	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Optics	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed
Detection Areas	68	68	136	136	68	68	68	68	136	68	68	136	68
True Creep Zones	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Range	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°	15m x 90°
Mounting Height	1.8m to 3.1m	2.0m to 2.2m	1.8m to 3.1m	1.8m to 3.1m	1.8m to 3.1m	2.0m to 2.2m	1.8m to 3.1m	1.8m to 3.1m	1.8m to 3.1m	1.8m to 3.1m	1.8m to 3.1m	1.8m to 3.1m	2.0m to 2.2m
Selectable Built in EOL Resistors	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	NO	NO	NO
Remote LED Control	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	NO	NO	NO
Pulse Count†	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2
Temperature Compensation	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	NO	NO	NO
Tamper Detection Options	Lid & Wall (Optional Screw Tamper Upgrade Available IR-200-S)	Lid & Wall (Optional Screw Tamper Upgrade Available IR-200-PET-S)	Lid & Wall (Optional Screw Tamper Upgrade Available QD-200-S)	Lid & Wall	Lid & Wall (Optional Screw Tamper Upgrade Available DT-200-S)	Lid & Wall (Optional Screw Tamper Upgrade Available DT-200-PET-S)	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall	Lid & Wall Bracket	Lid & Wall Bracket	Lid & Wall
Ceiling/Wall Bracket Option	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	(DB-G3)	(DB-G3)	NO
Advanced Signal Processing	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Microwave Frequency	NO	NO	NO	NO	K-Band, 24.15-24.25 GHz	K-Band, 24.15-24.25 GHz	K-Band, 24.15-24.25 GHz	NO	NO	K-Band, 24.15-24.25 GHz	NO	NO	NO
Microwave Enable/Disable	NO	NO	NO	NO	YES	YES	YES	NO	NO	YES	NO	NO	NO
Dimensions W x H x D mm	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40	60 x 118 x 40
Interchangeable Cartridges	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Anti-Masking (Active IR)	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES	NO	NO	NO
Self test	NO	NO	NO	NO	NO	NO	NO	Local & Remote	Local & Remote	Local & Remote	NO	NO	NO
Battery	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	CR 123A 3V Lithium	CR 123A 3V Lithium	CR 123A 3V Lithium
Average Battery Life	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	> 2 Years	> 2 Years	> 2 Years
True Battery Reading	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES
Frequencies	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	868.65MHz & 869.15MHz	868.65MHz & 869.15MHz	868.65MHz & 869.15MHz
Digital Thermometer	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES
Frequency Hopping	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES
Simple Enrolment	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES
2 Way Wireless Communications	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES	YES	YES
Typical Wireless Range	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	> 150m Line of Sight	> 150m Line of Sight	> 150m Line of Sight
EN 50131-2-x	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 2	Grade 3	Grade 3	Grade 3	Grade 2	Grade 2	Grade 2

†Patent Pending
