50 & 100 Series Detectors

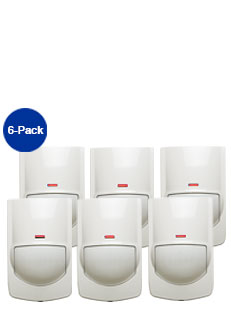

IR-50
Compact PIR - 6-Pack
Summary
15 Metre Range
Multi Height Optics
1.8m - 3.1m Mounting Height
Slide to Fit Front Cover
Sealed Optics
True Creep Zones
Digital Pulse Count †
Temperature Compensation
Advanced Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†
†Patent Pending
Request Information

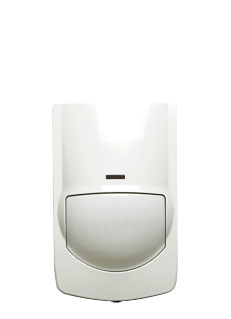

IR-100
Compact PIR
Summary
15 Metre Range
Multi Height Optics
1.8m - 3.1m Mounting Height
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count †
Temperature Compensation
Advanced Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†
†Patent Pending
Request Information
QD-100
Compact Quad PIR
Summary
Genuine Quad Element Pyro
15 Metre Range
Multi Height Optics
1.8m - 3.1m Mounting Height
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Advanced Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†
Request Information
IR-100-PET
Compact Pet Friendly PIR
Summary
35kg Pet Friendly
15 Metre Range
Multi Height Optics
2.0m - 2.2m Mounting Height
Selectable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Advanced Signal Processing†
RFI Immunity up to 2.7GHz
Optional Tamper Proof Bracket†
†Patent Pending
Request Information
W-IR-100
Compact Wireless PIR
Summary
2 Way Wireless Communications15 Metre Range
Multi Height Optics
Simple Enrolment
Frequency Hopping Technology
1.8m - 3.1m Mounting Height
Slide to Fit Front Cover
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
True Battery Reading
Digital Thermometer
†Patent Pending
Request Information
W-QD-100
Compact Wireless Quad PIR
Summary
2 Way Wireless CommunicationsGenuine Quad Element Pyro
15 Metre Range
Multi Height Optics
Simple Enrolment
Frequency Hopping Technology
1.8m - 3.1m Mounting Height
Slide to Fit Front Cover
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
True Battery Reading
Digital Thermometer
†Patent Pending
Request Information
W-IR-100-PET
Compact Wireless Pet Friendly PIR
Summary
2 Way Wireless Communications35kg Pet Friendly
15 Metre Range
Multi Height Optics
Simple Enrolment
Frequency Hopping Technology
2.0m - 2.2m Mounting Height
Slide to Fit Front Cover
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
True Battery Reading
Digital Thermometer
†Patent Pending
Request Information
Features
Multi Height Optics with True Creep Zones
Orisec’s unique Multi Height Optics with true creep zones enable mounting anywhere between 1.8m and 3.1m with no adjustment necessary or compromise in detection performance.

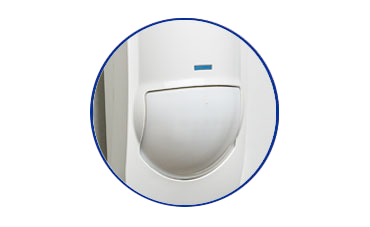

Sealed Optics
Sealed optics prevent bugs and dust from entering the housing, reducing false alarms and maximising reliability.

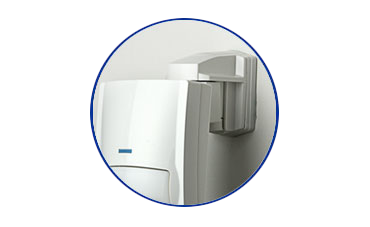

Tamper Proof Brackets†
Tamper proof wall or ceiling brackets enable precise coverage pattern adjustment and quick and simple installation in challenging mounting locations.
†Patent Pending
Using a Mobile - Rotate Device to View
| IR-50 | IR-100 | QD-100 | IR-100-PET | W-IR-100 | W-QD-100 | W-IR-100-PET | |
|---|---|---|---|---|---|---|---|
| Description | Compact PIR | Compact PIR | Compact Quad PIR | Compact Pet Friendly PIR | Compact Wireless PIR | Compact Wireless Quad PIR | Compact Wireless Pet Friendly PIR |
| Detection Technology | PIR | PIR | Genuine Quad Element Pyro | 35kg Pet Friendly PIR | PIR | Genuine Quad Element Pyro | 35kg Pet Friendly PIR |
| Slide to Fit Front Cover | |||||||
| RFI Immunity up to 2.7GHz | |||||||
| Optics | Multi Height Spherical Sealed | Multi Height Spherical Sealed | Multi Height Spherical Sealed | Multi Height Spherical Sealed | Multi Height Spherical Sealed | Multi Height Spherical Sealed | Multi Height Spherical Sealed |
| Detection Areas | 68 | 68 | 136 | 68 | 68 | 136 | 68 |
| True Creep Zones | |||||||
| Range | 15m x 90° | 15m x 90° | 15m x 90° | 15m x 90° | 15m x 90° | 15m x 90° | 15m x 90° |
| Mounting Height | 1.8m to 3.1m | 1.8m to 3.1m | 1.8m to 3.1m | 2.0m to 2.2m | 1.8m to 3.1m | 1.8m to 3.1m | 2.0m to 2.2m |
| Selectable Built in EOL Resistors | |||||||
| Remote LED Control | |||||||
| Pulse Count† | Digital, 1 or 2 | Digital, 1 or 2 | Digital, 1 or 2 | Digital, 1 or 2 | Digital, 1 or 2 | Digital, 1 or 2 | Digital, 1 or 2 |
| Temperature Compensation | |||||||
| Tamper Detection Options | Lid | Lid | Lid | Lid | Lid & Wall | Lid & Wall | Lid & Wall |
| Ceiling/Wall Bracket Option | (DB-G3) | (DB-G3) | (DB-G3) | ||||
| Advanced Signal Processing | |||||||
| Digital Thermometer | |||||||
| Simple Enrolment | |||||||
| Dimensions W x H x D mm | 60 x 97 x 40 | 60 x 97 x 40 | 60 x 97 x 40 | 60 x 97 x 40 | 60 x 97 x 40 | 60 x 97 x 40 | 60 x 97 x 40 |
| Interchangeable Cartridges | |||||||
| Frequency Hopping | |||||||
| Simple Enrolment | |||||||
| 2 Way Wireless Communications | |||||||
| Frequencies | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | ||||
| Typical Wireless Range | > 150m Line of Sight | > 150m Line of Sight | > 150m Line of Sight | ||||
| Battery | CR123A 3V Lithium | CR123A 3V Lithium | CR123A 3V Lithium | ||||
| Average Battery Life | > 2 Year | > 2 Year | > 2 Year |
†Patent Pending
