ES-320 & ES-330 Sounders & Speakers
ES-320
Complete Grade 2 Sounder
Summary
Grade 2109 dB
Single Piezo
48 Front Cover
& Lens Colour Options
Retained Front Cover
Locking Screws
Rotating Mounting Feet
Polycarbonate Construction
ES-330
Complete Grade 3 Sounder
Summary
Grade 3115 dB
Twin Piezo
48 Front Cover
& Lens Colour Options
Retained Front Cover
Locking Screws
Rotating Mounting Feet
Polycarbonate Construction

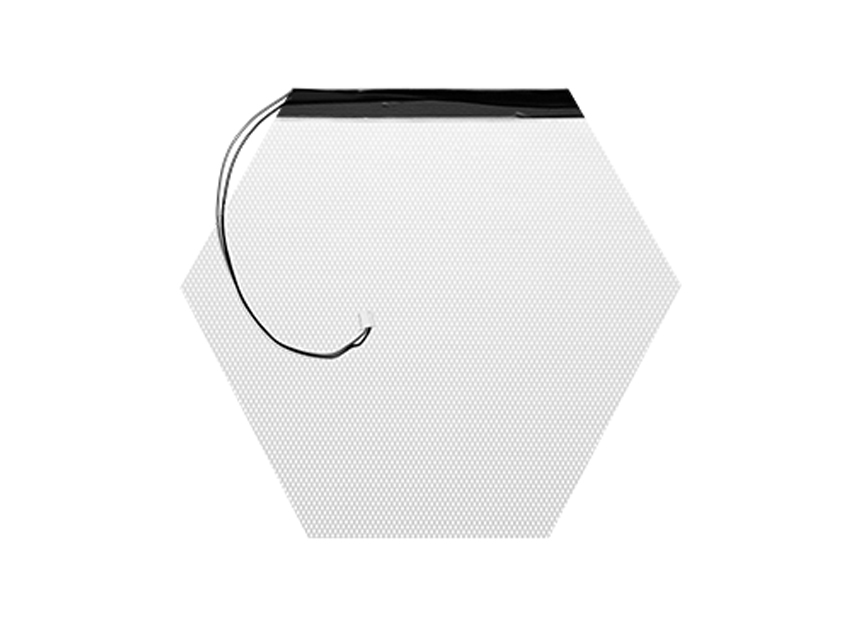

ES3-DLUX Backlight
Summary
Fits ES-320, ES-330& W-ES-320 (if powered locally)
Adjustable Brightness Retrospective Fit Option Illuminates 6 Cover Colours Option to Flash During Alarm
Dual LED Flasher Module
Summary
Ultra High Visibilty Twin LEDsPush to Fit on Orisec Decoy†
Weatherproof Casing† Extended Battery Life†
†Patent Pending
Using a Mobile - Rotate Device to View
| ES-320 | ES-330 | |
|---|---|---|
| Optional Orisec D-Lux Backlights | ||

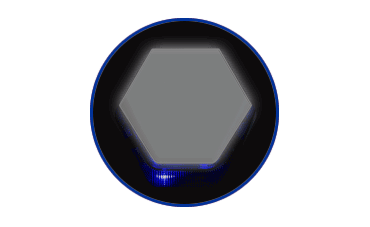

| Adjustable Local Backlight Illumination | ||
| Adjustable Remote Backlight Illumination | * | * |
| Orisec Network Compatible | ||
| Long Life LED Strobe | ||
| Sounder Volume | 109 dB | 115 dB |
| Piezo(s) | Single | Twin |
| Engineer Hold-Off Mode | ||
| Selectable SAB/SCB Mode | ||
| Twin Alternating LEDs | ||
| Low Current Mode | ||
| Local Selt-Test† | * | |
| Remote Self Test | * | |
| Fault Ouput | * | |
| Front Cover Tamper | ||
| Screw Tamper | ||
| Adjustable Wall Tamper† | ||

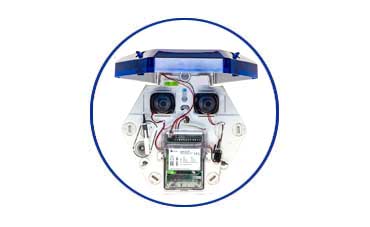

| Hinged front Cover with Quick Release† | ||
| Hinged Terminal Block Cover | ||
| Spirit Level | ||
| Rotating Mounting Feet | 4 | 4 |
| Retained Front Cover Locking Screws† | ||
| Act as a Wireless Repeater | ||
| Sealed Electrics | IP44 | IP65 |
| Dimensions (W x H x D mm) | 298 x 295 x 60mm | 298 x 295 x 60mm | *When connected via Orisec Network |
